TINTED GLASSES

The body-tinted glasses having different colors, like blue, bronze, green, grey are called sun control glasses.

Tinted solar control glass is subjected to thermal breakage risks. In order to avoid thermal breakage risks, toughening or heat strengthening is recommended. When laminating tinted glass, all panes of the laminated glass should be either toughened or heat strengthened in order to avoid thermal breakage risks.

The performance values of EFTCG Tinted Float glasses produced by EFTCG Flat Glass are below.


* Combination: 6 mm EFTCG Tinted Float + Air Space + 6 mm EFTCG Clear Float

Translucency: The percentage of light that passes through the glass.
Daylight Reflection: The percentage of light that is reflected by the glass.
Solar Energy Total Translucency: The percentage of the total sun heat that affects the indoors.
Shade Coefficient: Comparison of the total translucency of solar energy with 3 mm colourless glass.
Heat Conductivity Coefficient (U value): The measure of the heat escaping outdoors.


REFLECTIVE GLASSES


Glasses with a hard A-type pyrolytic coating according to EN 1096-1 is called reflective glasses which control the sun lights. Different colors, like blue, bronze, clear, green, grey are available.

Reflective solar control glass is subjected to thermal breakage risks. In order to avoid thermal breakage risks, toughening or heat strengthening is recommended. When laminating reflective glass, all panes of the laminated glass should be either toughened or heat strengthened in order to avoid thermal breakage risks.

The performance values of EFTCG Tentesol and EFTCG Tentesol Titanyum glasses produced by EFTCG Flat Glass are below.



* Combination: 6 mm EFTCG Tentesol + Air Space + 6 mm EFTCG Clear Float


* * Combination: 6 mm EFTCG Tentesol Titanium + Air Space + 6 mm EFTCG Clear Float

Translucency: The percentage of light that passes through the glass.
Daylight Reflection: The percentage of light that is reflected by the glass.
Solar Energy Total Translucency: The percentage of the total sun heat that affects the indoors.
Shade Coefficient: Comparison of the total translucency of solar energy with 3 mm colourless glass.
Heat Conductivity Coefficient (U value): The measure of the heat escaping outdoors.



HEAT AND SUN CONTROL GLASSES

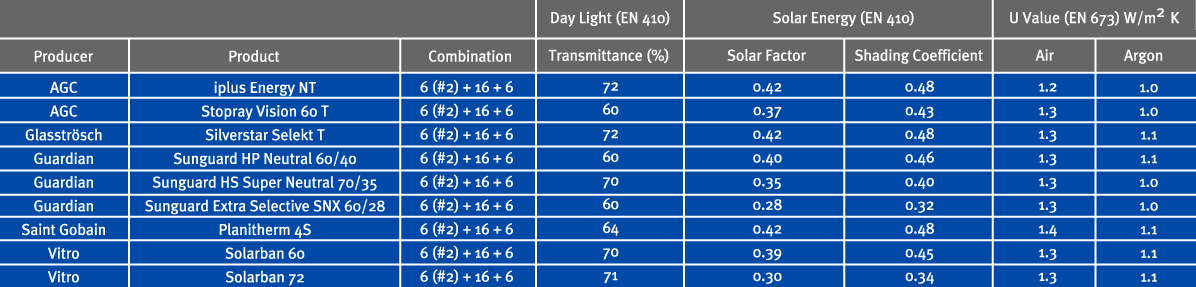

EFTCG Cam is able to process all type of heat and solar control coated glasses produced by worldwide well known glass manufacturers.


EFTCG TEMPERABLE LOW-E GLASS
EFTCG Temperable Solar Control Low-E Glass is EFTCG Flat Glass’ heat and solar control glass.



Advantages



  • The coating provides heat and solar control properties at the same time.

  • Heating and cooling expenses are reduced.

  • Provides alternative solutions to projects with its different performance choices.

  • In accordance with architectural trends, provides solutions to safety requirements which is rising in line with expansion of the glass surface area and increase in glass thickness. It eliminates the risk of injury by dividing into small pieces which are not sharp, when breaks.

  • Reduces condensation on glass surface.

  • In winter cold spots, in summer hot spots by windows are eliminated and heat inside the room is radiated equally.


Insulating Glass Unit (IGU) manufactured with EFTCG Solar Control Low-E Glass reduces heat loss from windows by 50% compared to ordinary IGU. Therefore effective heat insulation in winter is provided and heating expenses are reduced.

It also decreases solar energy transmission by 40-65% compared to ordinary IGU. Therefore it keeps cooler in summer and cooling expenses are reduced. Tempered heat and solar control glass is approximately 5 times more durable than annealed heat and solar control glass.


Colors


Besides applied on clear float glass, temperable Solar Control Low-E coating can also be applied on green, gray, bronze and blue body tinted glass on demand.


en-table-sisecam-temperable-solar-low-e.

DECORATIVE DOUBLE GLAZING


EFTCG Cam is able to process Georgian bars with required patterns inside the double glazing units.

Available thicknesses;

  • 8 mm, 16 mm, 24 mm


Available colors which durable UV lights;

  • White and various (in RAL codes) colors




BONDING


EFTCG Cam provides bonding services within its facilities for structural facades.

When you provide aluminium cassettes for your facade projects, the double glazing units will be applied by our experienced team.



EFTCG Cam is autohorized manufacturer of Isıcam Systems. We are regularly inspected by EFTCG Flat Glass.

The Isıcam brand is an assurance of:

  • Proper quality and quantity of glass and auxiliary material used in production, and

  • Constant realization of production under eligible conditions through the use modern technologies.


The Isıcam Systems C Series is the classical series which provides insulation at a standard level through the Isıcam's assurance.


Features


Isıcam C L

Isıcam unit, manufactured by using EFTCG Laminated Glass, offers safety and security features by preventing injuries that may be caused by the fragmentation of glass after breaking, as well as thermal insulation.




Isıcam C AL

Isıcam unit, manufactured by using sound insulation EFTCG Acoustic Laminated Glass, also provides noise control in addition to thermal insulation, thusly reducing the transfer of sound while also offering the safety and security features of EFTCG Laminated Glass.










Isıcam C R

Isıcam unit, manufactured by using the EFTCG Tinted Float Glass that provides solar control, both offers thermal insulation and limits solar heat gain in buildings, as well as controls extreme solar brightness, and reduces cooling energy consumption in air-conditioned environments.



Isıcam C RF

Isıcam unit, manufactured by using EFTCG Tentesol and EFTCG Tentesol Titanium reflective glass that provides solar control, both ensures thermal insulation and limits solar heat gain in buildings, as well as controls extreme solar brightness and reduces cooling energy consumption in air-conditioned environments. It creates a mirror effect when it is viewed from the side where the light is bright, due to its reflective features. It provides visual integrity on commercial buildings with glass facades.


* Combination: 6 mm EFTCG Clear Float + Air Space + 6 mm EFTCG Clear Float


Translucency: The percentage of light that passes through the glass.
Daylight Reflection: The percentage of light that is reflected by the glass.
Solar Energy Total Translucency: The percentage of the total sun heat that affects the indoors.
Shade Coefficient: Comparison of the total translucency of solar energy with 3 mm colourless glass.
Heat Conductivity Coefficient (U value): The measure of the heat escaping outdoors.



Isıcam Systems K series is made of high quality heat and solar control coated EFTCG Solar Low-E Glass. By providing maximum thermal insulation and solar control, it reduces your heating costs in winter and cooling costs in summer.


Advantages

  • Compared to ordinary double glazing units, it reduces thermal losses by 50% saving heating costs in winter, and it reduces solar heat gains by 40%, thus reducing cooling costs and saving energy in summer.

  • It does not compromise transparency and natural daylight while providing thermal and solar control.

  • It prevents cold window fronts in winter and hot window fronts in summer, and delays condensation compared to ordinary double glazing units.

  • Compared to ordinary double glazing units, your spending on Isıcam K will return you in 1 to 2 years time with your heating costs saved in winter.


Features

Isıcam K L

Isıcam unit, manufactured by using EFTCG Solar Low-E Glass and EFTCG Laminated Glass that offers safety and security, both provides savings for the heating and cooling costs and prevents the fragmentation of glass upon potential injuries.

Isıcam K AL

Isıcam unit, manufactured by using EFTCG Solar Low-E Glass and EFTCG Acoustic Laminated Glass, provides sound insulation in addition to saving heating and cooling costs and also has the safety and security features of EFTCG Laminated Glass.

Isıcam K T

It is manufactured by using the safety-providing EFTCG Temperable Solar Low-E Glass (heat and solar control glass). When it is broken, it fragments into small and blunt pieces thus reduces the risk of injury. That's why it is eligible for use as a safety glass. The product reduces heating and cooling costs by its heat and solar control features.

Isıcam K 3+

It is the triple Isıcam systems which provides maximum insulation. It offers 4 times better thermal insulation compared to ordinary double glazing units.


* Combination: EFTCG Solar Control Low E Glass + Air Space + EFTCG Clear Float

Translucency: The percentage of light that passes through the glass.
Daylight Reflection: The percentage of light that is reflected by the glass.
Solar Energy Total Translucency: The percentage of the total sun heat that affects the indoors.
Shade Coefficient: Comparison of the total translucency of solar energy with 3 mm colourless glass.
Heat Conductivity Coefficient (U value): The measure of the heat escaping outdoors.



Isıcam Systems S series is made of high quality heat control coated EFTCG Low-E Glass. They provide maximum thermal insulation and reduce your heating costs.

Advantages


  • Compared to double glasses, it reduces heat losses by 50% and decreases fuel costs.

  • It does not compromise transparency and natural daylight while providing thermal control.

  • It prevents cold window fronts in winter and delays condensation compared to ordinary double glazing units.

  • Compared to ordinary double glazing units, your spending on Isıcam S will return you in 1 to 2 years time with your heating costs saved in winter.


Features


Isıcam S L
Isıcam unit, manufactured by using EFTCG Low-E Glass and EFTCG Laminated Glass that offers safety and security, both provides savings for the heating costs and prevents the fragmentation of glass upon potential injuries.

Isıcam S AL
Isıcam unit, manufactured by using EFTCG Low-E Glass and EFTCG Acoustic Laminated Glass, provides sound insulation in addition to saving heating costs and also has the safety and security features of EFTCG Laminated Glass.

Isıcam S T
It is manufactured by using the safety-providing EFTCG Temperable Low-E Glass (heat control glass). When it is broken, it fragments into small and blunt pieces thus reduces the risk of injury. That's why it is eligible for use as a safety glass. The product reduces heating costs by its heat control features.

Isıcam S 3+
It is the triple glazing insulating Isıcam unit which provides maximum insulation. It offers 4 times better thermal insulation compared to ordinary double glazing.


Isıcam S R
Isıcam unit, manufactured by using EFTCG Low-E Glass and EFTCG Tinted Float Glass that provides solar control, both offers thermal insulation and limits solar heat gain in buildings, as well as controls extreme solar brightness, and reduces cooling energy consumption in air-conditioned environments.

Isıcam S RF
Isıcam unit, manufactured by using EFTCG Low-E Glass and EFTCG Tentesol or EFTCG Tentesol Titanium reflective glass that provides solar control, both ensures thermal insulation and limits solar heat gain in buildings, as well as controls extreme solar brightness and reduces cooling energy consumption in air-conditioned environments.It creates a mirror effect when it is viewed from the side where the light is bright, due to its reflective features. It provides visual integrity on commercial buildings with glass facades.


* Combination: 6 mm EFTCG Low E Glass + Air Space + 6 mm EFTCG Clear Float
** Combination: 6 mm EFTCG Clear Float + Air Space + 6 mm EFTCG Low E Glass

Translucency: The percentage of light that passes through the glass.
Daylight Reflection: The percentage of light that is reflected by the glass.
Solar Energy Total Translucency: The percentage of the total sun heat that affects the indoors.
Shade Coefficient: Comparison of the total translucency of solar energy with 3 mm colourless glass.
Heat Conductivity Coefficient (U value): The measure of the heat escaping outdoors.
